Paramount SDX Drain Cover with Screws for Vinyl and Fiberglass - Dark Grey

SDX is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. A “Retro” version is available to bring existing suction outlet covers into compliance with the new law. SDX Retro fits existing plaster rings up to 10” in diameter.

SDX boasts a flow rating of 200 gpm on the floor and 192 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm.

Features and Benefits:

• NO SUMP REQUIRED - No need to chisel out a sump to meet the1.5 times the pipe diameter sump depth requirement
• SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm
• Approved as a bulkhead fitting so the safety is in the cover and plate
• Patented “ribbed” design achieves high flow with sixty “mini” drains
• Suction doesn’t transfer if one area is covered
• Dome shape to prevent a seal by a swimmer
• Anti-vortex shield blocks contact with direct suction
• SDX retro can be installed as a single cover with an SVRS installed on the line
• "Retro" version fits existing suction outlets up to 10” in diameter

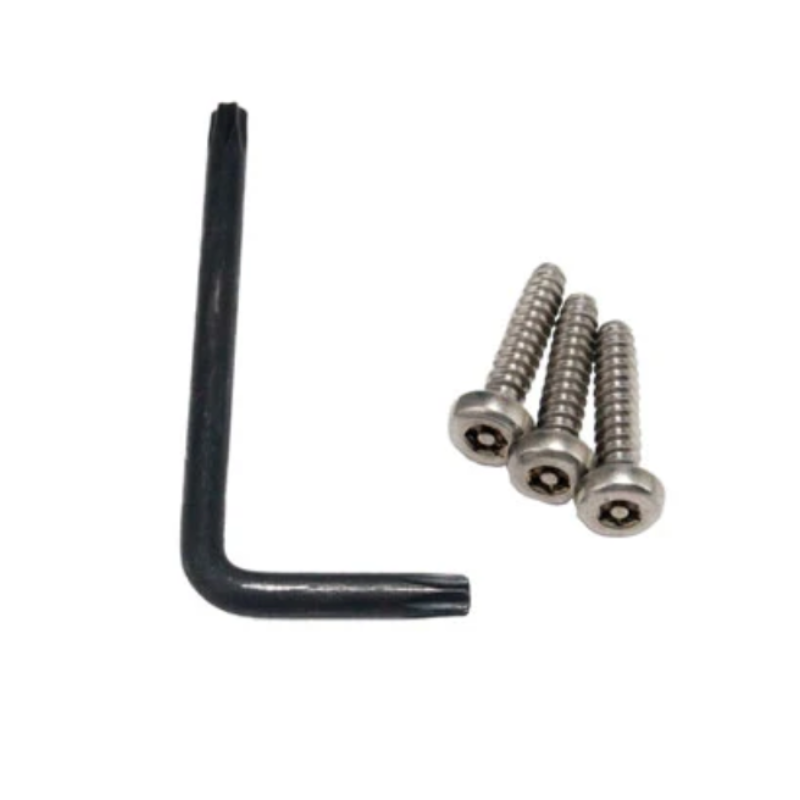

• Stainless steel security screws
• Secondary support plate secured to protect the sump and fittings
