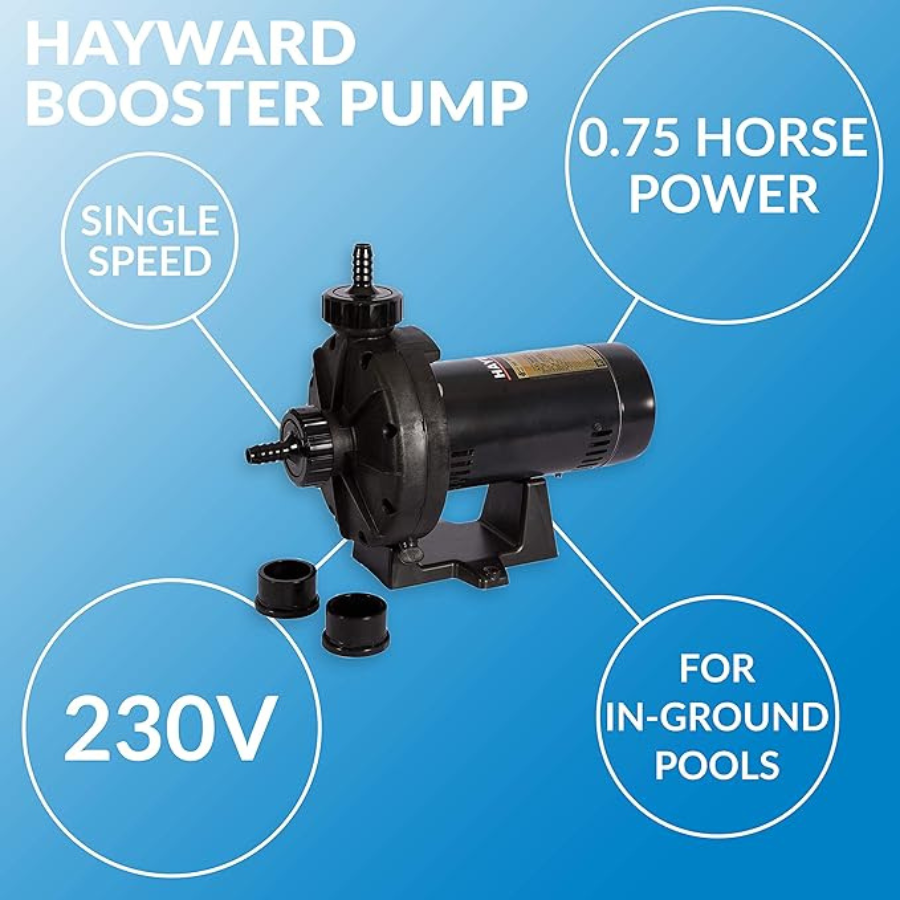

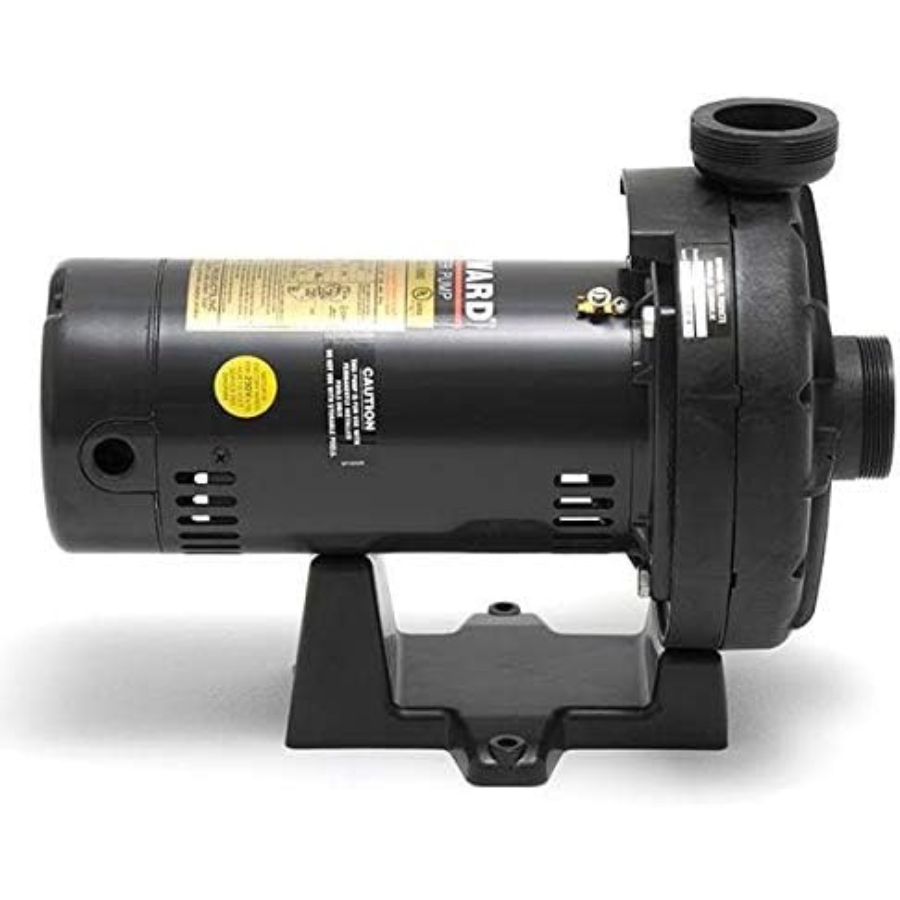

Hayward W36060 0.75 HP Booster Pump

W36060, previously 6060.

For pressure cleaner applications, Hayward's booster pump is the most aftermarket friendly and energy efficient booster pump in the industry. The Hayward booster pump is exceptionally quiet and uses up to 40% less electricity than other models. Both 1 1/2" pipe unions and 2/3" hose fittings are included to provide easy installation and service for new construction and replacement applications. It is also equipped with an elevated base for increased motor ventilation as well as added protection from flooding.

Features:

• The most energy efficient booster pump in the industry - Up to 40% less electricity than other booster pumps. Reduces cost of operation for pool owner
• Exceptionally quiet
• Easy installation - 1.5in union fittings for improved performance, easy installation and servicing. 3/4in hose barb union adapters allow for easy retro fit to existing installations using flexible hose for booster pump connections

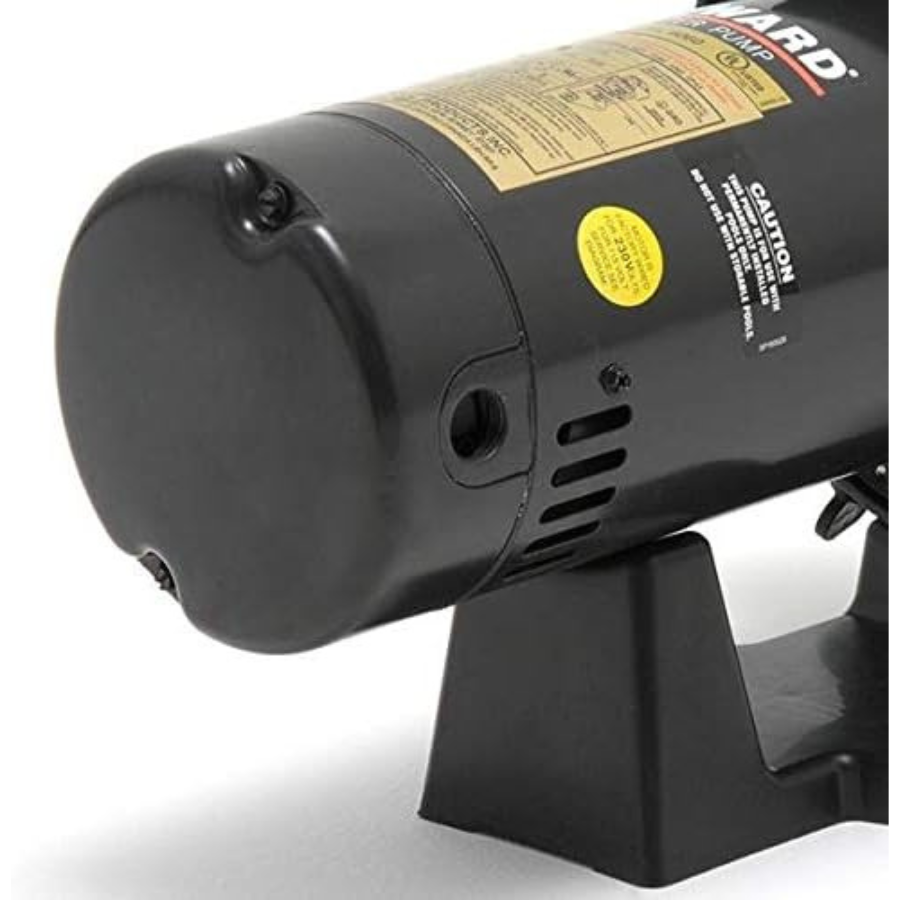

• Tall motor base allows for increased motor ventilation as well as protection from flooding
• Suitable for all pressure cleaners requiring a booster pump

GENERAL FAQ'S FOR ALL HAYWARD PUMPS

How does my in-ground Pump operate?

Hayward in-ground pumps are self-priming centrifugal pumps. These pumps have a vacuum chamber, commonly known as a pump housing. The pump housing must be filled with water in order to create a vacuum, resulting in the pump drawing the water out of your pool or spa. The pump housing will remain full of water while the pump is on, and will remain full or partially full when the pump is shut off.

When powered on, the motor will begin to rotate. Two-speed pumps will power on a pre-selected speed or with some controllers, it will cycle at high before changing to the lower speed. The motor spins the pump impeller, located inside the pump volute. While the motor is rotating, the tips of the impeller are hydraulically sealed inside the pump diffuser, which is responsible for self-priming.

Self-priming can only occur if the pump has a diffuser--all in ground Hayward pumps have an internal diffuser. It helps to eliminate any air approaching into the pump housing from the suction piping. As all the air is removed from the system, you will notice bubbles returning to the pool through the return fittings. A full prime occurs when the bubbles stop returning to the pool and the pump basket is full of water. The filter pressure will rise as the pump reaches full prime. The actual gallons per minute (GPM) vary with the type of pump, horsepower, pipe size, distance from pool and other restrictions within the plumbing system.

Hayward self-priming pumps are very dependable and simple in design. They require a sufficient supply of water from the pool or spa, and no air in the suction lines. Air could come from a loose strainer cover, a leak in any valve, a pinhole in any suction line or a crack or loose connections in the underground piping.

Do I need to have a strainer basket in my pump pot?

Yes. Without the strainer basket, debris will clog the impeller in the pump volute causing the pump to cease moving water. Be sure to clean your strainer basket, as well as the skimmer baskets, so water flow is not obstructed and the pump is not overworked.

How do I winterize my pump?

To winterize a Hayward Pool pump, turn off the electrical circuit breaker that supplies power to the pump. Also, make sure that there is NO water left inside the pump. All Hayward pumps are equipped with drain plugs that will allow excess water to drain once the plugs are removed. Contact your local Hayward dealer for proper winterization procedures.

How many hours per day should I run my pump?

There are many factors to consider; bather load, gallons of water, pump horsepower, type and size of filter just to name a few. A good guideline is 8-10 hours a day. On the cooler days and early and late season, you can cut the run time down to 4-6 hours because there is usually less swimmers and cooler water requires less chemicals. In peak season, when it is the hottest, raising the run time to 10-12 hours per day will help to keep the pool clean and circulating during it's time of heaviest use.

1 Year Manufacturer's Parts Warranty.

Warranty Coverage: At the manufacturer's discretion. Limited warranty covers replacement parts if the pump is installed with a pool or spa. The applicable Warranty Period is one (1) year from the Purchase Date for parts only. Please see product manual for specific warranty details.

Pool cleaners are designed for maintenance use, not for large clean-ups like opening a pool. Pool cleaners are capable of removing debris, e.g., leaves and dirt. Algae removal is not an intended use.
